TUBULAR LEVEL INDICATOR

Recognised in Mumbai as one of the top manufacturers and suppliers of level indicators, Mayur Instruments has been top service providers of a gamut of level indicators. We are engaged in production and supply of several industrial indicators like tubular level indicator, magnetic level indicator, reflex level indicator, transparent level indicator, manometer, switches and many more.

Our level indicators display accuracy, fail-safe operation, easy operation and low maintenance. They are especially used to measure the level of liquid in process tanks, storage tanks, underground reservoirs, etc. Clients from all over the world acknowledge our level indicators as they are user- friendly and highly affordable.

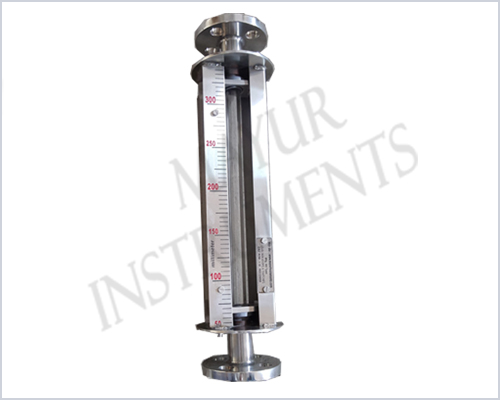

Tubular Level Indicator (Side Mounted)

Model No. : MI - 01

The "Mayur Instruments" make Tubular Level Indicator(Side Mounted). It is a reliable device for direct reading the level of liquid. It is a simplest form of level indicator. These level indicators find wide application for level measurement in process tanks, batching tanks / storage / overhead etc.

Specification

Connection Flanged ASA 150#/ASA 300#
End Fitting CS/S.S.304/S.S 316/P.P
Protective Channel C.S.Rectangle Channel box With Powder Coated/ S.S.304/S.S 316
Glass Tube Heavy Walled Borosilicate H-19/16 / 22 / 25
Packing Teflon
Valve C.S./S.S.304/S.S. 316/P.P.
Press Rating Up to 12 Kg/cm2
Temp. Rating Up to 100℃ to 200℃
Range 300 to 5000 mm
Vacuum Full
